1.5 KG Portable Battery Charger 12V 20A World Input 120 - 230Vac Charge Automatically

    Buy cheap 1.5 KG Portable Battery Charger 12V 20A World Input 120 - 230Vac Charge Automatically from wholesalers

    Buy cheap 1.5 KG Portable Battery Charger 12V 20A World Input 120 - 230Vac Charge Automatically from wholesalers
    • Buy cheap 1.5 KG Portable Battery Charger 12V 20A World Input 120 - 230Vac Charge Automatically from wholesalers
    • Buy cheap 1.5 KG Portable Battery Charger 12V 20A World Input 120 - 230Vac Charge Automatically from wholesalers
    • Buy cheap 1.5 KG Portable Battery Charger 12V 20A World Input 120 - 230Vac Charge Automatically from wholesalers
    • Buy cheap 1.5 KG Portable Battery Charger 12V 20A World Input 120 - 230Vac Charge Automatically from wholesalers

    1.5 KG Portable Battery Charger 12V 20A World Input 120 - 230Vac Charge Automatically

    Ask Lasest Price
    Brand Name : VLDL
    Model Number : VL1220 / VL1220L
    Certification : CE, ROHS
    Payment Terms : TT, Paypal
    Supply Ability : 1,000 pcs / month
    Delivery Time : 7 - 10 days
    Price : Negotiable
    • Product Details
    • Company Profile

    1.5 KG Portable Battery Charger 12V 20A World Input 120 - 230Vac Charge Automatically

    1.5 KG Portable Battery Charger 12V 20A World Input 120 - 230Vac Charge Automatically


    Brief Description:

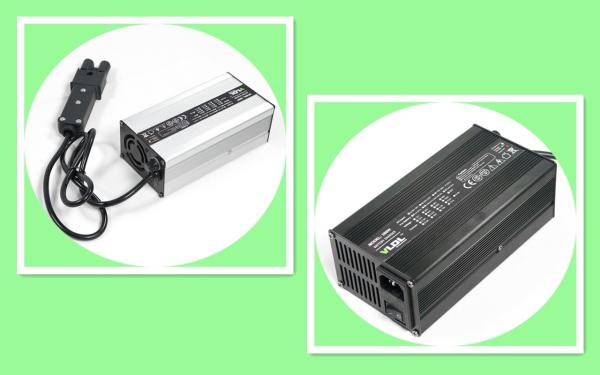

    Portable battery charger 12 volts 20 amps with aluminum housing and small size. Input with worldwide 110 - 240 Vac. Max charigng voltage is 14.4V or 14.7V for lithium (LiFePO4, Li - ion, Li Polymer, LiMO2) or lead acid (SLA, AGM, Deep cycle, Flooded, GEL). Automatic four steps charging with pre - charge, CC, CV and floating / shut - off. This smart 12V charger can detect your battery state automatically and then charge it automatically accordingly, protect your battery life to maximum.


    Features


    1) Optional charging methods: Lithium or lead acid batteries.

    2) Advanced high frequency switching mode power supply technology.

    3) DC output isolated from AC input.

    4) Automatic worldwide Input 110/230Vac(90~264Vac), 50Hz~60Hz.

    5) Charging parameters are insensitive to the AC input line voltage variations.

    6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.

    7) Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

    8) Aluminum casing, light weight, portable.

    9) 100% full load burn-in test.

    10) 2 years warranty.


    Technical Specs.:


    1) Dimensions(LxWxH): 170 x 90 x 63 MM

    2) Net weight: 1.5 KG

    3) Max charging voltage(CV): 14.6 / 14.7 volt

    4) Floating voltage: customized

    5) Max output current (CC): 20 amps

    6) Charging method: pre-charge, CC, CV, floating / trickle or shut off

    7) AC input voltage: 110 - 240Vac

    8) AC input freq.: 50 / 60 Hz

    9) AC plug: customized by users country

    10) Output connector type: customized by applications

    11) Enclosure: Aluminum


    Output series: 360W Size: 170×90×63 mm Net weight: 1.5 KG
    InputModelApply to battery typesFloating VCV (V)CC (A)Switching

    AC Input:

    110 / 230V


    Frequency:

    47~63HZ


    VL1220L12V LiFePO4 Battery14.6V20ACC5~8%
    VL122012V Lead-acid Battery13.5V14.7V20ACC20%
    VL2412LM24V Li-MnO2 Battery29.4V12ACC5~8%
    VL2412L24V LiFePO4 Battery29.2V12ACC5~8%
    VL241224V Lead-acid Battery27.6V29.4V12ACC20%
    VL3608LM36V Li-MnO2 Battery42V8ACC5~8%
    VL3608L36V LiFePO4 Battery43.8V8ACC5~8%
    VL360836V Lead-acid Battery41.4V44.1V8ACC20%
    VL4805LM48V Li-MnO2 Battery54.6V5ACC5~8%
    VL4805L48V LiFePO4 Battery43.8V5ACC5~8%
    VL480548V Lead-acid Battery55.2V58.8V5ACC20%
    VL6004L60V LiFePO4 Battery73V4ACC5~8%
    VL600460V Lead-acid Battery67.5V73.5V4ACC20%
    VL7203L72V LiFePO4 Battery87.6V3ACC5~8%
    VL720372V Lead-acid Battery81V88.2V3ACC20%
    Note: customized input / output / plug type / connectors are available.
