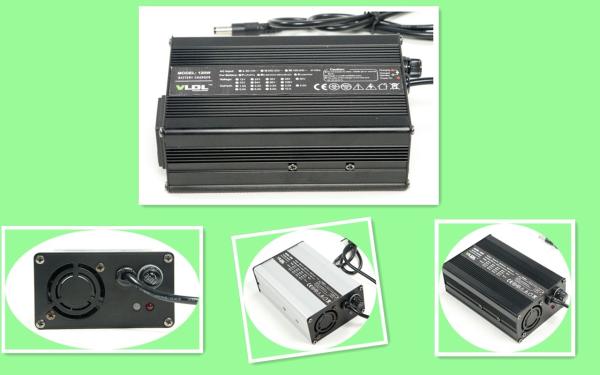

Multistage MCU Controlled AGM Battery Charger , AGM SLA Battery
Charger 12 Volts 6 Amps
Brief Description:
AGM / GEL / SLA battery charger 12 volts 6 amps, input with
worldwide 110 to 230Vac and rated output voltatge is 12V 6A. Smart
max charging voltage is 14.7V for sealed lead acid type batteries
or 14.4V AGM batteries. Intelligent 4 stages charging with
pre-charge, CC, CV and floating / trickle steps, this charger will
charge your battery powered electric vehicles very fast, with high
efficiency and pretect your battery life maximumly. High quality,
factory price and 2 years warranty.
Features
1) Optional charging methods: Lithium or SLA / AGM batteries.
2) Advanced high frequency switching mode power supply technology.
3) DC output isolated from AC input.
4) Automatic worldwide Input 110 / 230Vac (90 ~ 264Vac), 50Hz ~
60Hz.
5) Charging parameters are insensitive to the AC input line voltage
variations.
6) Completely automatic 4 steps charge: pre-charge, CC, CV,
floating / trickle or shut-off.
7) Protections: Short circuit, Over - voltage, Over - temperature,
Reverse Polarity.
8) Aluminum casing, light weight, portable.
9) 100% full load burn-in test.
10) 2 years warranty.
Technical Specs.:
1) Dimensions(LxWxH): 135 x 90 x 50 mm
2) Net weight: 0.8 KG
3) Max charging voltage(CV): 14.4 / 14.7 volts
4) Floating voltage: customized
5) Max output current (CC): 6 amps
6) Charging method: pre-charge, CC, CV, floating / trickle or shut off
7) AC input voltage: 110 - 240Vac
8) AC input freq.: 50 / 60 Hz
9) AC plug: customized by user’s country
10) Output connector type: customized by applications
11) Enclosure: Aluminum
| Output series: 120W Size: 135×90×50 mm Net weight: 0.8 KG |
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
AC Input: 85~264V
Frequency: 47~63HZ
| VL1206L | 12V LiFePO4 Battery | | 14.6V | 6A | CC5~8% |
| VL1206 | 12V Lead-acid Battery | 13.5V | 14.7V | 6A | CC20% |
| VL2404LM | 24V Li-MnO2 Battery | | 29.4V | 4A | CC5~8% |
| VL2404 | 24V Lead-acid Battery | 27.6V | 29.4V | 4A | CC20% |
| VL3603L | 36V Li-MnO2 Battery | | 42V | 3A | CC5~8% |
| VL36025L | 36V Li-MnO2 Battery | | 42V | 2.5A | CC5~8% |
| VL3602 | 36V Lead-acid Battery | 41.4V | 44.1V | 2A | CC20% |
| VL4802LM | 48V Li-MnO2 Battery | | 54.6V | 2A | CC5~8% |
| VL4802 | 48V Lead-acid Battery | 55.2V | 58.8V | 2A | CC20% |
| Note: customized input / output / plug type / connectors are
available. |
