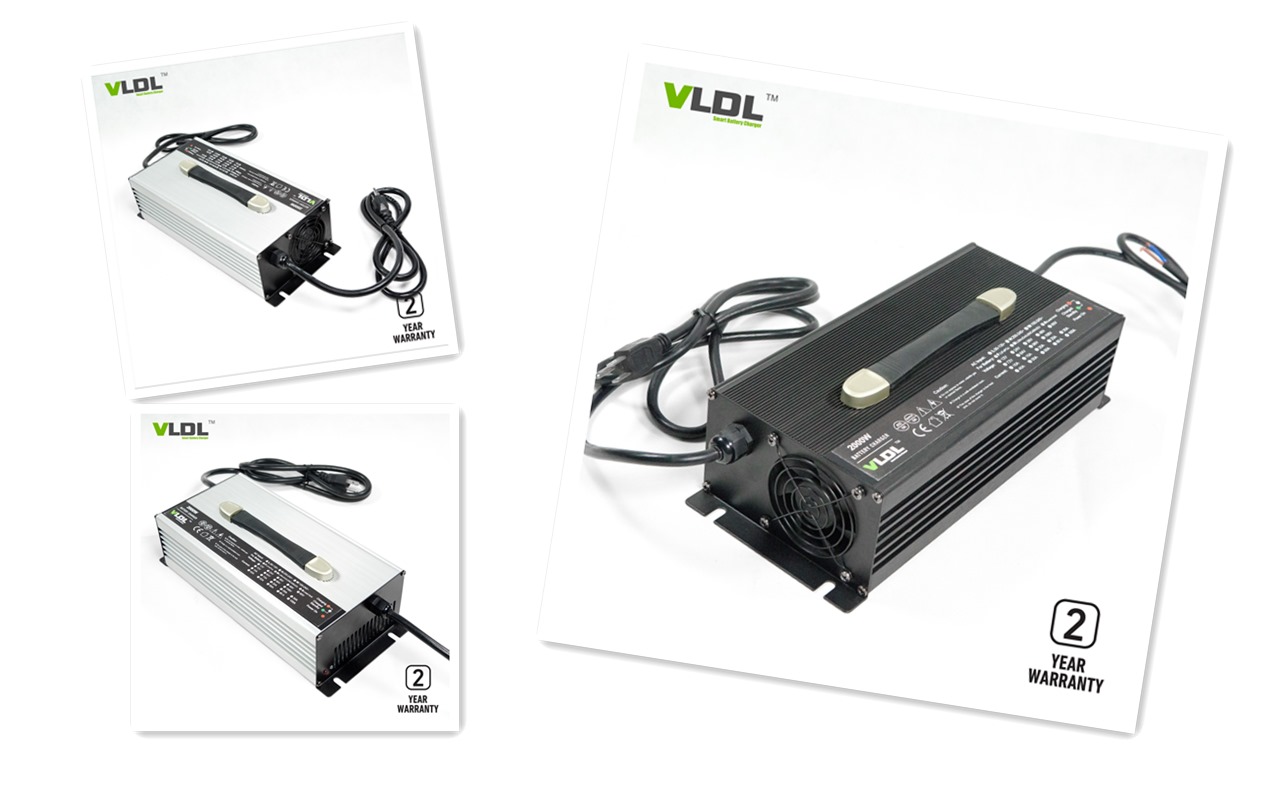

96V 15A Lead Acid Battery Charger, Suit For SLA, GEL, AGM Battery, Automatic 4 Steps Charging

Technical Specs.:

1) Dimensions(LxWxH): 330 x 150 x 90 mm

2) Net weight: 6.5 KG

3) Max charging voltage(CV): 116.8 / 117.6 volt

4) Floating voltage: customized

5) Max output current (CC): 15 amps

6) Charging method: automatic pre-charge, CC, CV, floating / trickle or shut off

7) AC input voltage: 110 or 230Vac single

8) AC input freq.: 50 / 60 Hz

9) AC plug: customized by user’s country

10) Output connector type: customized by applications

11) Enclosure: Aluminum

Brief Descriptions:

This 96V Smart Battery Charger is designed for 96V 32 cells Lithium batteries or 96V lead-acid batteries. Rated output power is 96Vdc 15Amps, max 116.8V for LiFePO4 battery, 112V for LiMOn2 battery and 117.6V for Lead acid battery.

It has our latest switching mode power supply technology and MCU controlled.

Smart, automatic and fast charging.

Input voltage is 110Vac or 230Vac, 50/60Hz.

Charging method is 4 steps: Pre-charge, CC, CV, Floating / Cut-off.

Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

Forced ventilation with fans.

Efficiency > 95%.

Aluminum casing, light weight, portable.

100% full load burn-in test.

High quality with factory price.

Warranty: full 2 years.

About Us

Found in 2008 as Guangzhou Chuxin Import & Export Co., Ltd.

We have other two companies:

Danl New Energy Co., Limited (Hong Kong)

Guangzhou Danl Technology Co., LTD

15 years experience of designing and manufacturing switching-mode technology battery chargers.

10 years experience of exporting to USA, Euro countries and worldwide.

Specializing in customizing Smart Battery Chargers for battery & EV factories or wholesalers worldwide and providing high quality ODM & OEM service and charging solution.

Main Products Classified By Battery Type:

• Lithium Battery Chargers For LiFePO4, Li-ion, Li-polymer, LiMOn2 Batteries.
• Lead-Acid Battery Chargers For SLA, Deep cycle, Silicon and AGM Batteries.

Main Products Classified By EV Type:

E-Tool Battery Charger, E-Bike Battery Charger, E-Skateboard Battery Charger, E-Scooter Battery Charger, E-Motorcycle Battery Charger, E-Lawnmower Battery Charger, E-Golfcart Battery Charger, E-Floor Sweeper Battery Charger, AGV Battery Charger, E-Forklift Battery Charger, E-Car Battery Charger.

Battery Charger Main Output Power:

50W, 60W, 80W, 90W, 120W, 180W, 240W, 360W, 600W, 900W, 1000W, 1200W, 1500W, 2000W, 2500W.

Output Voltage & Current:

4.2V, 6V, 12V, 24V, 36V, 48V, 60V, 72V, 84V, 96V...188V with various charging currents from 0.5 amps to 100 amps.

As a smart battery chargers manufacturer, factory and wholesaler, Danl promises that we only supply high quality product, no cheap components, no struggling warranty policy, we guarantee 2 Years Full Warranty Policy and Free Replacement. Proud of our quality and best after service!

Brand of Danl
