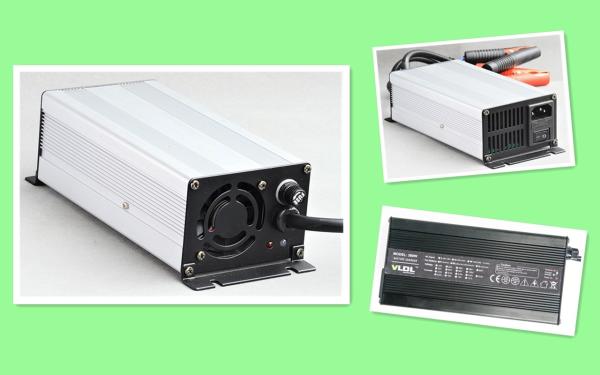

CC CV 6A 60v Lead Acid Battery Charger Single 230Vac For SLA AGM Battery

Specification:
• Input voltage: AC 180~264V 50/60Hz
• Output voltage: DC 73.5V
• Max charging current: 6A

• Charging method: automatic CC CV and Floating
• Dimensions (mm): 170*90*50mm
• Gross weight: 1.5kg

Features:
• Fully auto CC +CV(H)+CV(L) charging process,with MCU controller
• Constant big charging current for faster charging;
• automatically charging ending with Cut-Off output;
• Aluminum case with Fan Cooling
• It can charge any 60V SLA/VRLA/GEL/AGM battery with capacity 60-120Ah

Quick Detail:
Brand Name:VLDL
Model Number: VL6006
Use: 60V Lead-Acid/AGM/GEL Battery
Type: Smart
Place of Origin:Guangzhou China (Mainland)
Battery charger: automatic battery charger 58.8V
Certificate: CE FCC ROHS
Color: Black/Silver
Shell Material:Aluminium alloy
Input voltage: AC180~264V 50/60Hz
Output voltage: 73.5V
Output current: 6A
Output power: 500W
Efficiency:>=85%
Shock & Vibration: SAEJ1378 Standard
Charge mode:CC---CV---Float Charge
Output Connector: Crocodile clip,aviation connector,XLR,Ring terminal,SB50A Plug,customization

Packaging & Delivery :
Inner package: white box/polybags/at your request

Outer package:carton
Delivery Detail:sample within 5 work days,7~15 days for bulk order

Specifications:
Portable fast SLA /AGM /VRLA /GEL charger 48V lead acid battery charger

Safety protections:
• Over Voltage protection
• Short Circuit protection
• Polarity error protection
• Over power protection

LED Indicator:
• GREEN Light ON: fully charged or no connected.
• RED Light on: charging in process.
