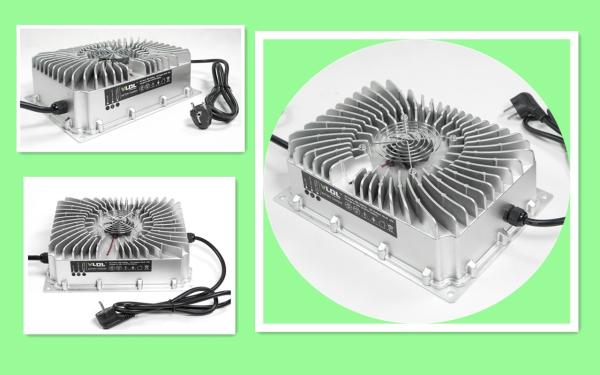

PFC 12V 50A Waterproof Battery Charger, fully sealed with IP65,
automatic 14.4V / 14.6V / 14.7V charging
Brief Descriptions:
This fully sealed waterproof battery charger is designed for
charging boats, outdoor charging EVs. Input voltage is worldwide
110-230Vac, with PFC to protect your state grid net, high
efficiency. Output rated is 12V 50Amps high current charging.
Automatic CC CV charging, smart and portable. Protections: Short circuit, Over-voltage, Over-temperature, Reverse
Polarity.
Technical Specs.:
1) Dimensions(LxWxH): 296 × 216 × 98 MM
2) Net weight: 6.0 KG
3) Max charging voltage(CV): 14.4 / 14.6 / 14.7 volt
4) Floating voltage: customized
5) Max output current (CC): 50 amps
6) Charging method: pre-charge, CC, CV, floating / trickle or shut off
7) AC input voltage: 110 - 230Vac with PFC
8) AC input freq.: 50 / 60 Hz
9) AC plug: customized by user’s country
10) Output connector type: customized by applications
11) Enclosure: Aluminum
12) Waterproof rate: IP65 / IP66
| 1,500W waterproof charger Size: 269×216×98 mm Net weight: 6.0 KG |
| Input | Model | Apply to battery types | Floating V | CV (V) | CC (A) | Switching |
PFC AC Input: 110 - 230V
Frequency: 47~63HZ
| VL1280WPL | 12V LiFePO4 Battery | | 14.6V | 80A | CC5~8% |
| VL1280WP | 12V Lead-acid Battery | 13.5V | 14.7V | 80A | CC20% |
| VL1480WP | 14V AGM Battery | 13.5V | 14.4V | 80A | CC20% |
| VL1680WPL | 16V LiFePO4 Battery | | 18.2V | 80A | CC5~8% |
| VL2445WPLM | 24V Li-MnO2 Battery | | 29.4V | 45A | CC5~8% |
| VL2445L | 24V LiFePO4 Battery | | 29.2V | 45A | CC5~8% |
| VL2445 | 24V Lead-acid Battery | 27.6V | 29.4V | 45A | CC20% |
| VL3630WPLM | 36V Li-MnO2 Battery | | 42V | 30A | CC5~8% |
| VL3630WPL | 36V LiFePO4 Battery | | 43.8V | 30A | CC5~8% |
| VL3630WP | 36V Lead-acid Battery | 41.4V | 44.1V | 30A | CC20% |
| VL4825WPLM | 48V Li-MnO2 Battery | | 54.6V | 25A | CC5~8% |
| VL4825WPL | 48V LiFePO4 Battery | | 43.8V | 25A | CC5~8% |
| VL4825WP | 48V Lead-acid Battery | 55.2V | 58.8V | 25A | CC20% |
| VL6020WPL | 60V LiFePO4 Battery | | 73V | 20A | CC5~8% |
| VL6020WP | 60V Lead-acid Battery | 67.5V | 73.5V | 20A | CC20% |
| VL7215WPL | 72V LiFePO4 Battery | | 87.6V | 15A | CC5~8% |
| VL7215WP | 72V Lead-acid Battery | 81V | 88.2V | 15A | CC20% |
| VL8413WPL | 84V LiFePO4 Battery | | 102.2V | 13A | CC5~8% |
| VL8413WP | 84V Lead-acid Battery | 94.5V | 102.9V | 13A | CC20% |
| VL9612WPL | 96V LiFePO4 Battery | | 116.8V | 12A | CC5~8% |
| VL9612WP | 96V Lead-acid Battery | 108V | 117.6V | 12A | CC20% |
| Note: customized input / output / plug type / connectors are
available. |
