Waterproof smart battery charger 48V 20A with IP66, max 54.6V 58.4V 58.8V charging

Brief introduction:

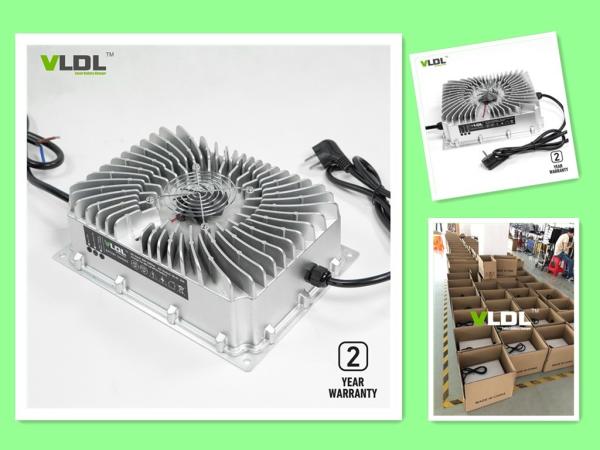

48V 20A output Marine Battery Charger.

IP65 / IP66 Waterproof Rate.

Fully Sealed Aluminum Silver Case.

Universal 90~264Vac input voltage with PFC.

50.4V / 54.6 / 58.4 / 58.8V customized max charging voltage for Lithium / lead-acid batteries.

Micro-processor controlled and intelligent 4 steps charging.

92% high efficiency.

2 years warranty, high quality.

CE & IP65 certified with Test Report.

Advantages:
Smart and Advanced Charging Controls:
You can decide your battery charger's charging steps, pre-charging with small current,
constant current charging,constant voltage charging, floating charging or automatically cut-off
when it's fully charged.

CAN communication:
We can add CAN bus for communication. Controlled by software for starting and charging.
Read all information by CAN bus port and communicate with your battery's BMS.

Dual input voltages:
Just plug the AC plug to the wall socket, our charger will detect voltage 110V or 230V automatically.
No need to choose by hand! No worry for wrong input voltage to break charger.

Automatic detecting and charging:
After setting right charging voltage and steps, our charger will run automatically, just leave it alone.
Automatic detecting battery's voltage and charging status, stop and re-charging by itself.
No worry for over-charging, no need to operate it again and again.

High quality, free replacing in 2 years:
We only provide high quality product, so we guarantee 2 years free replacing warranty policy.
There are no other suppliers have the same policy. But we have confidence to provide.

Spcifications:

Item No.: VL4820LWP

Dimension: 310*230*101 mm

Gross weight: 8.0 KG

Input voltage: wide 90~264Vac

Output rated: 48Vdc 20Amps

Max charging: customized 50.4V / 54.6V / 58.4V / 58.8V

WaterProof rate: IP65 / IP66

Applied to battery Types: 48V Lithium / Lead-acid Battery

Smart Charging: Auto. Pre-charge, CC, CV, Floating or Cut-off.
