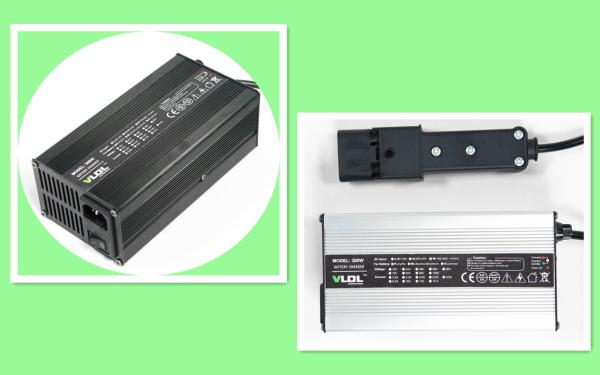

Lithium Battery Charger 36V 8A, Smart Charging, Facotry Price with 2 Years Warranty

Designed for 36 Volt lithium or lead acid battery powered electric scooters or motorcycles, input with 110 or 230Vac and rated output voltatge is 36 volt 8 amps. Smart max charging voltage is 42 / 43.8 volt for lithium batteries or 44.1 volt for lead acid deep cycles batteries. Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut-off, this charger will charge your electric club cars very fast, with high efficiency and pretect your battery life maximumly. We provide customizing smart battery chargers for all your special batteries of your unique e-scooters or e-motorcycles.

Technical Specs.:

1) Dimensions(LxWxH): 170 x 90 x 63 mm

2) Net weight: 1.5 KG

3) Max charging voltage(CV): 42 /43.8Vdc

4) Floating voltage: /

5) Max output current (CC): 8 amps

6) Charging method: Pre-charge, CC, CV

7) AC input voltage: 110 or 230Vac

8) AC input freq.: 50 / 60 Hz

9) AC plug: US, UK, EU, India, AU etc.

10) Output connector type: XLR, Anderson, Clips, RCA etc.

11) Enclosure: Aluminum

Features:

◆ Advanced high frequency switching mode power supply technology.

◆ DC output isolated from AC input.

◆ Input 110/230Vac, 50Hz~60Hz.

◆ Charging parameters are insensitive to the AC input line voltage variations.

◆ Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.

◆ 2 LEDs: LED1 Red (power on), LED2 Red/green (charging/full)..

◆ Possibility to customize charging curve for request.

◆ Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.

◆ Efficiency > 95%.

◆ Forced ventilation with fans.

◆ 100% full load burn-in test.

◆ Aluminum casing, light weight, portable.

About Us

Found in 2008 as Guangzhou Chuxin Import & Export Co., Ltd.

We have other two companies:

Danl New Energy Co., Limited (Hong Kong)

Guangzhou Danl Technology Co., LTD

15 years experience of designing and manufacturing switching-mode technology battery chargers.

10 years experience of exporting to USA, Euro countries and worldwide.

Specializing in customizing Smart Battery Chargers for battery & EV factories or wholesalers worldwide and providing high quality ODM & OEM service and charging solution.

Main Products Classified By Battery Type:

• Lithium Battery Chargers For LiFePO4, Li-ion, Li-polymer, LiMOn2 Batteries.
• Lead-Acid Battery Chargers For SLA, Deep cycle, Silicon and AGM Batteries.

Main Products Classified By EV Type:

E-Tool Battery Charger, E-Bike Battery Charger, E-Skateboard Battery Charger, E-Scooter Battery Charger, E-Motorcycle Battery Charger, E-Lawnmower Battery Charger, E-Golfcart Battery Charger, E-Floor Sweeper Battery Charger, AGV Battery Charger, E-Forklift Battery Charger, E-Car Battery Charger.

Battery Charger Main Output Power:

50W, 60W, 80W, 90W, 120W, 180W, 240W, 360W, 600W, 900W, 1000W, 1200W, 1500W, 2000W, 2500W.

Output Voltage & Current:

4.2V, 6V, 12V, 24V, 36V, 48V, 60V, 72V, 84V, 96V...188V with various charging currents from 0.5 amps to 100 amps.

As a smart battery chargers manufacturer, factory and wholesaler, Danl promises that we only supply high quality product, no cheap components, no struggling warranty policy, we guarantee 2 Years Full Warranty Policy and Free Replacement. Proud of our quality and best after service!
